Applying Column & Row level filters

In Eightwire there are several options to restrict the data that is available in a shared datastore without changing the source data structure.

Datastore options: Row level filters

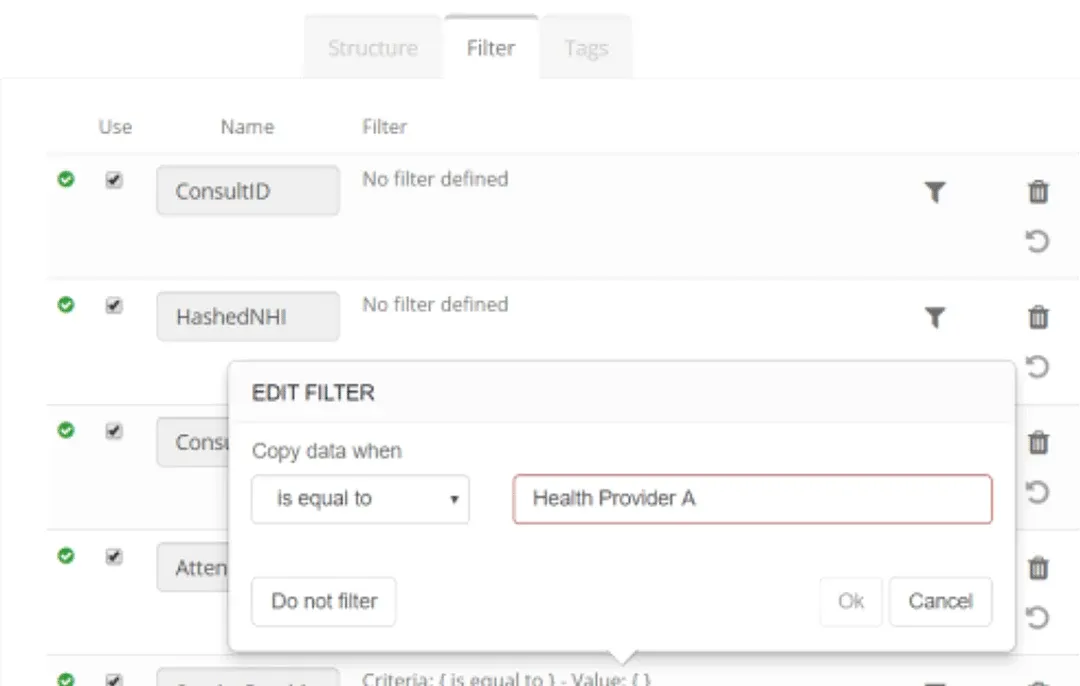

Browse a Datastore to view an object to apply row level filters.


Datastore options: Column level filters

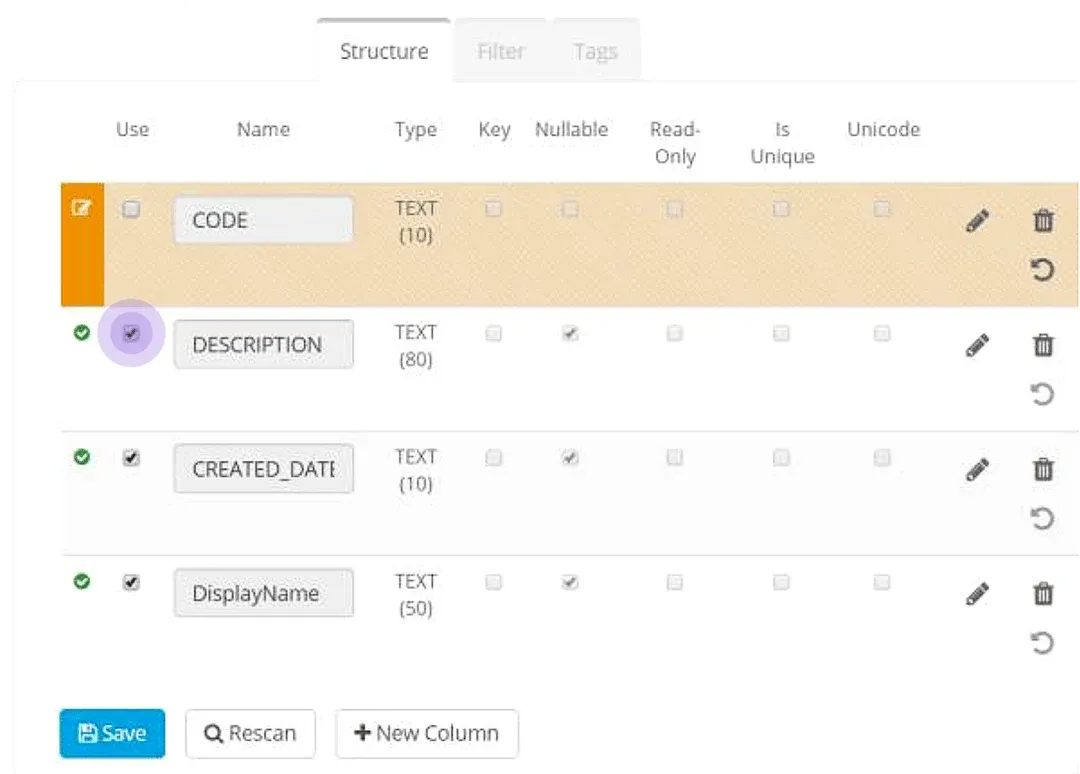

To restrict a column from being used in a process, simply untick the 'Use' checkbox and Save.

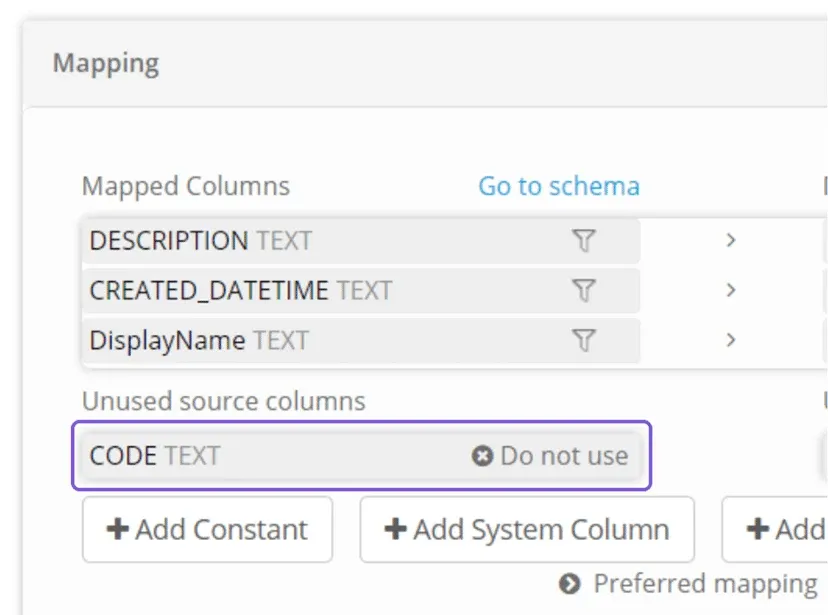

The restricted column appears unavailable (marked Do Not Use) and cannot be mapped to a destination column.

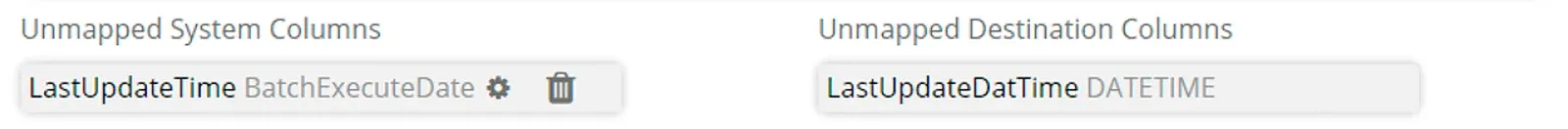

Unmapped columns will not be written to the destination.

A process can be executed successfully - even when source columns are not mapped to a destination.


Datastore Queries

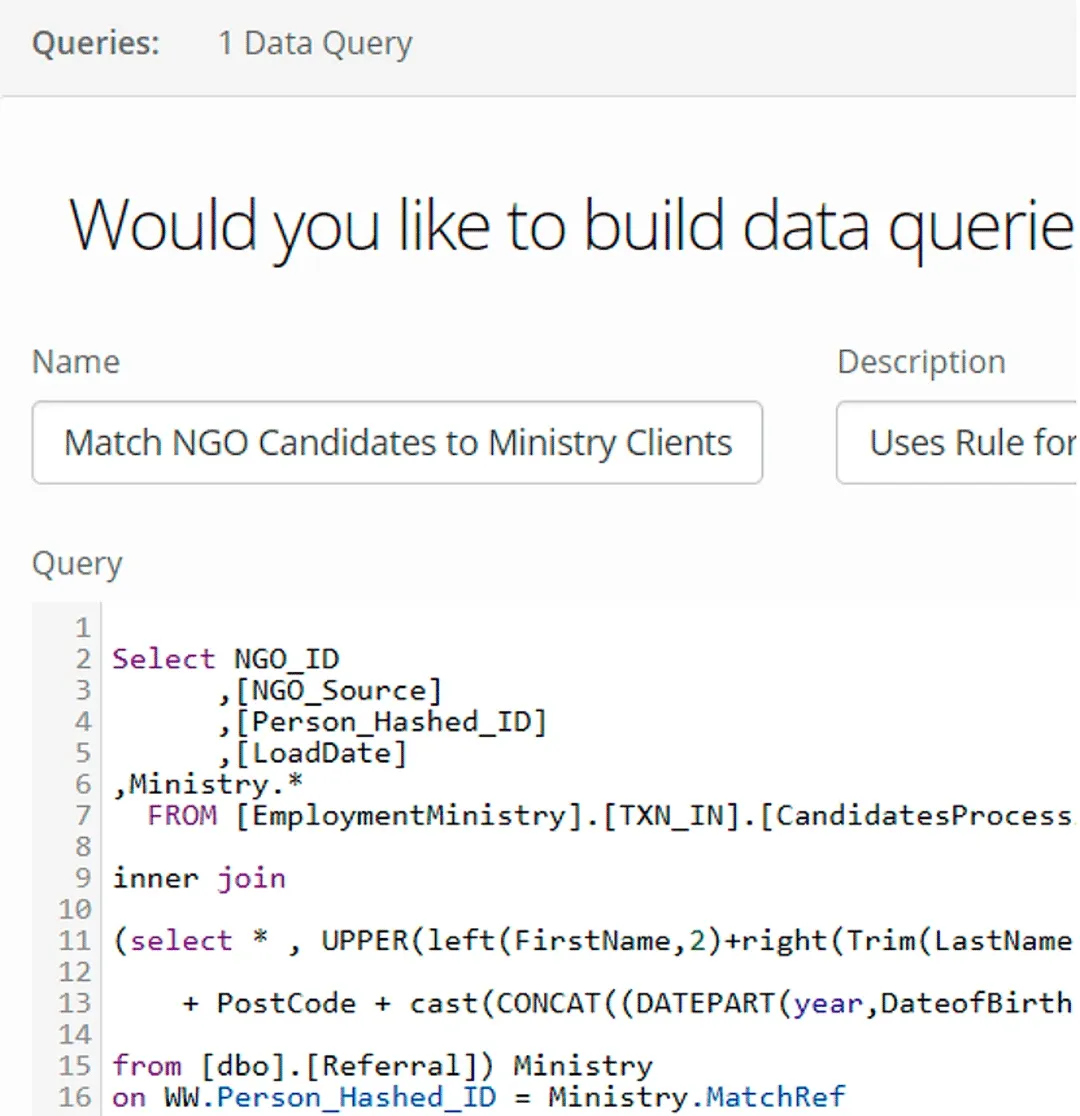

Source Datastores connecting to relational databases have a Query tab available which allow you to create custom views of the data to share.

This is a way to apply column level filtering to the data presented in a Datastore.


Process filters

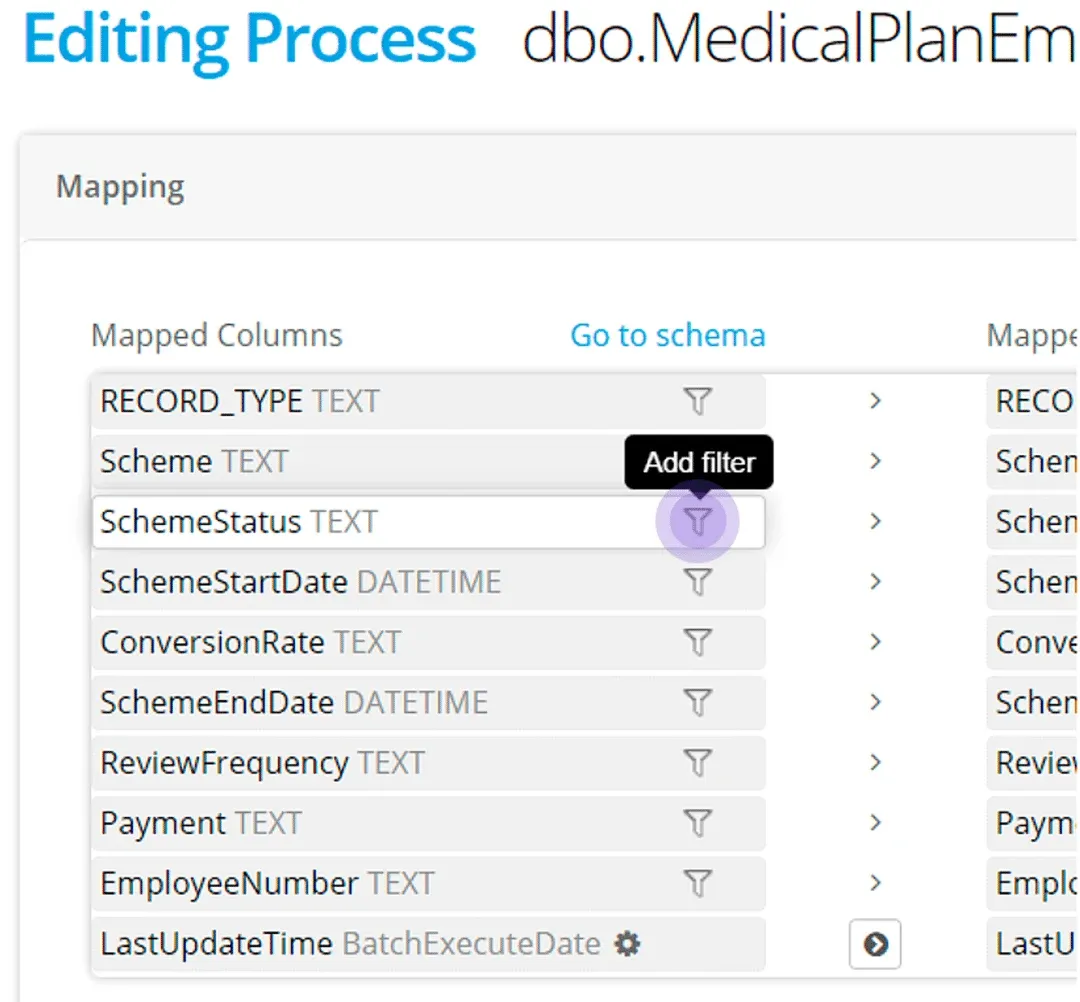

Apply a filter within a process to control the rows written to a destination.


A column does not have to be mapped for a filter to be applied to a dataset
